Mandal Fairlead Shackle – Stainless steel mooring shackle with sleek shape designed to pass through fairleads.

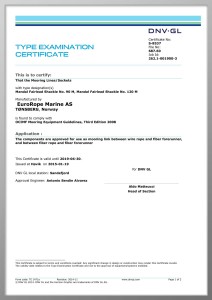

Each link is proof tested and certified by DNV, and are DNV Type Approved.
Available in two sizes, 90 M and 120 M.
| Shackle 90 M Tail 56-64 mm | Shackle 120 M Tail 68-80 mm |
|---|---|
| A = 255 mm | A = 300 mm |
| B = 97 mm | B = 121 mm |
| C = 120 mm | C = 130 mm |
| D = 65 mm | D = 82 mm |
| E = 67 mm | E = 90 mm |
| F = 100 mm | F = 128 mm |
| R = 34 mm | R = 34 mm |
| Breaking load: 90 tonnes | Breaking load: 120 tonnes |
| Proof load: 30 tonnes | Proof load: 40 tonnes |
| Weight: 7.8 kg | Weight: 13.3 kg |
